Search vehicle drawings | ccvision CAR-SPECIAL®: Volkswagen Touran

CAR-SPECIAL^® Search

Filename:	VW_453 open in CAR-SIGNER 3D preview
Description:	Volkswagen Touran
Year:	from 2015
Model series:	II (Typ 5T)
Drive type:	Verbrenner
Body:	station wagon
Doors:	5 doors
Measurements (mm):	Show data

Volkswagen Touran station wagon, from 2015 (VW_453)

Volkswagen Touran station wagon, from 2015

Filename:	VW_320 open in CAR-SIGNER 3D preview
Description:	Volkswagen Touran
Year:	2010–2015
Model series:	I (Typ GP2), Facelift 2
Drive type:	Verbrenner
Body:	station wagon
Doors:	5 doors
Measurements (mm):	Show data

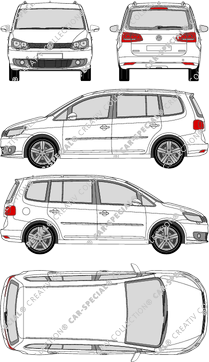

Volkswagen Touran station wagon, 2010–2015 (VW_320)

Volkswagen Touran station wagon, 2010–2015

Filename:	VW_316
Description:	Volkswagen Touran Cross
Year:	2009–2015
Model series:	I (Typ GP2), Facelift 2
Drive type:	Verbrenner
Body:	station wagon
Doors:	5 doors
Measurements (mm):	Show data

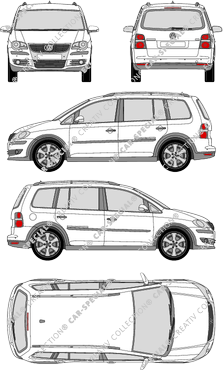

Volkswagen Touran station wagon, 2009–2015 (VW_316)

Volkswagen Touran station wagon, 2009–2015

Filename:	VW_315
Description:	Volkswagen Touran
Year:	2009–2015
Model series:	I (Typ GP2), Facelift 2
Drive type:	Verbrenner
Body:	station wagon
Doors:	5 doors
Measurements (mm):	Show data

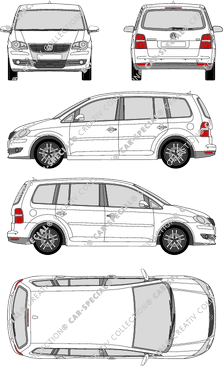

Volkswagen Touran station wagon, 2009–2015 (VW_315)

Filename:	VW_209
Description:	Volkswagen Touran
Year:	2006–2009
Model series:	I (Typ GP), Facelift
Drive type:	Verbrenner
Body:	station wagon
Doors:	5 doors
Measurements (mm):	Show data

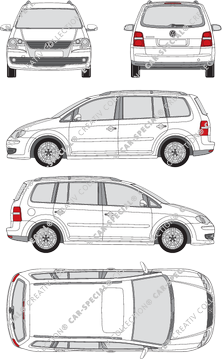

Volkswagen Touran station wagon, 2006–2009 (VW_209)

Volkswagen Touran station wagon, 2006–2009

Filename:	VW_113
Description:	Volkswagen Touran
Year:	2003–2006
Model series:	I
Drive type:	Verbrenner
Body:	station wagon
Doors:	5 doors
Measurements (mm):	Show data

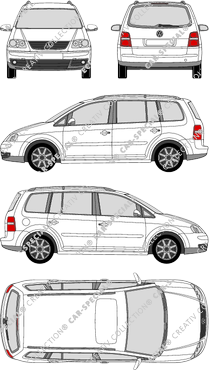

Volkswagen Touran station wagon, 2003–2006 (VW_113)

Volkswagen Touran station wagon, 2003–2006

How to find your vehicle:

Quick search:
enter the manufacturer/model in the search field at the top, click “Find!” or press the Enter key.
Search with model overview:
Click on the “Latest vehicles A-Z” tab, then on “Vehicles – manufacturers A-Z”. Select a model.

Drag the photos of the vehicle views to the appropriate place:

Important: Only the information that can be selected in the search is helpful in finding vehicles. Manufacturer/type code numbers or engine type (e.g. TDI) do not help.

The following details are important:

Cars

Manufacturer, model, year of manufacture (e.g. VW Golf 2023)
Body type (estate, convertible …)

Note: Equipment packages such as sports and exclusive packages have no relevant influence on the basic body and can only be implemented in individual cases.

Commercial vehicles

Manufacturer, model, year of construction (e.g. Renault Trafic 2024)
Length and height
Number of sliding doors
Rear: rear doors or flap, glazed or remaining
Sides: rear, glazed or partially glazed
Rear- or front-wheel drive, depending on manufacturer

Trucks

Manufacturer, model, year of construction (e.g. Mercedes Actros 2023)
Cab variant (manufacturer's designation)

Buses

Manufacturer, model, year of construction (e.g. MAN Lion's City 2021)
Length, width and height

Note: Due to the large variety of models, photos are also absolutely necessary.

Do you need our help?

send us an e-mail now

… or call us: +49 0761 479240

Important! To be able to help you, we need as much of the above information as possible.

Filename:

File formats
AI, EPS, CDR, DXF for CorelDraw, Adobe Illustrator and all common plotting programs

Measure the vehicle before plotting films!

Vehicle drawings can only inadequately reproduce shapes such as curved panes, curves and beading. Slanted panes and surfaces are shown in a shortened perspective, and corner radii may also deviate. The paths and dimensions of the drawings must therefore not be used for the film cut without first checking them on the original vehicle. creativ collection^® cannot accept any liability for dimensional deviations.
